User Guide
Triggers are created and edited from Configure Triggers in the module settings. Each one is built on three tabs: the event to watch for, the filters that narrow it down, and the actions to run.

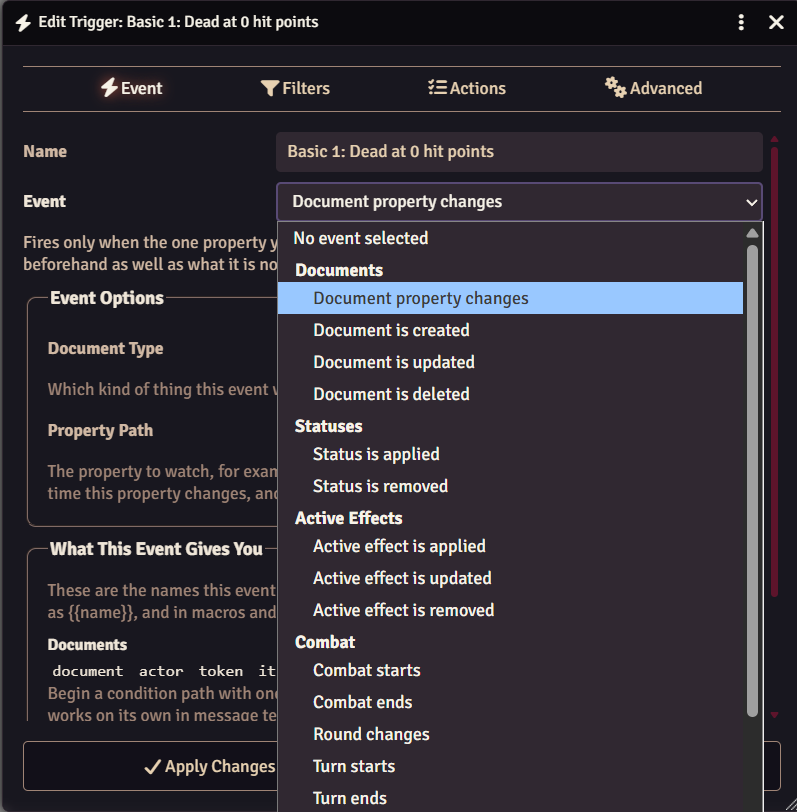

Events
An event decides what the trigger watches for.
| Group | Events |
|---|---|
| Documents | Document property changes; document is created, updated, or deleted |
| Statuses | Status is applied or removed |
| Active Effects | Active effect is applied, updated, or removed |
| Combat | Combat starts or ends, round changes, turn starts or ends |
| Tokens | Token moves, token is targeted |
| World | World time changes, game is paused, user connects |
| D&D 5e | See Events and Actions for Your System |
Document is updated fires on any change to a document. Document property changes fires only when the property you name is part of an update, and lets conditions see what that property held before the change.

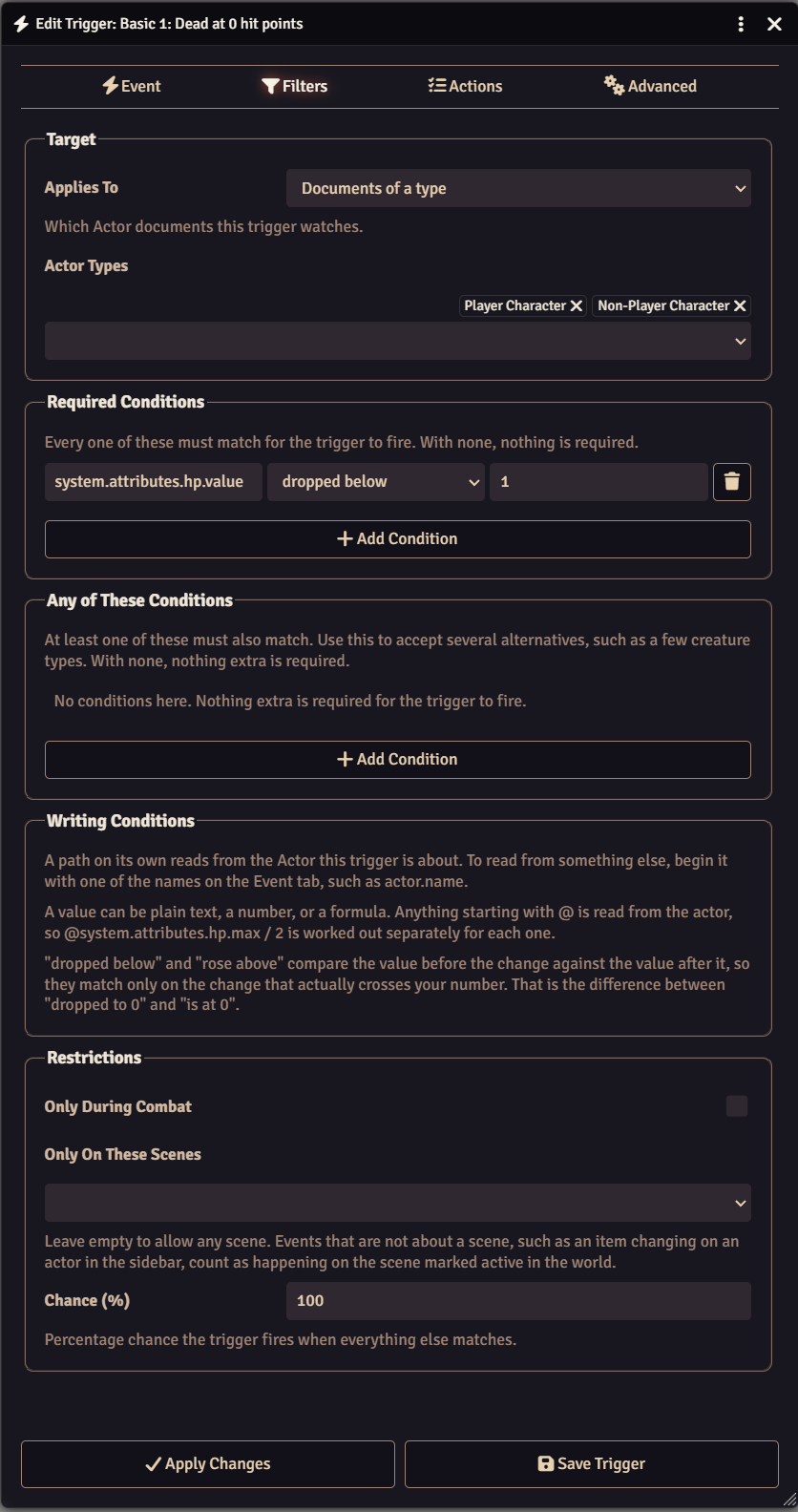

Filters
Filters decide whether a trigger that heard its event should actually run.
Applies To narrows by document. Leave it on any document, drag in specific documents, or pick document types.
Conditions compare a property against a value. Paths are read from the
document the event is about. For instance, system.attributes.hp.value reads the HP of the actor on
an actor event. Start a path with a context name to read from something else:
actor.typeeffect.nameprevious.system.attributes.hp.value
Values can be plain text or numbers, an expression such as
@system.attributes.hp.max / 2, or a regular expression with the pattern
operator. Your game system's short forms, such as @abilities.str.mod, work
too. Dice are not rolled here, only in actions.
Restrictions limit a trigger to combat, to certain scenes, or to a percentage chance. An event that is not about a scene counts as happening on the active scene, not the one you have open.
The context prefix is how you stop a trigger reacting to its own changes. An effect trigger that pins down the effect name will ignore any effect it applies itself.

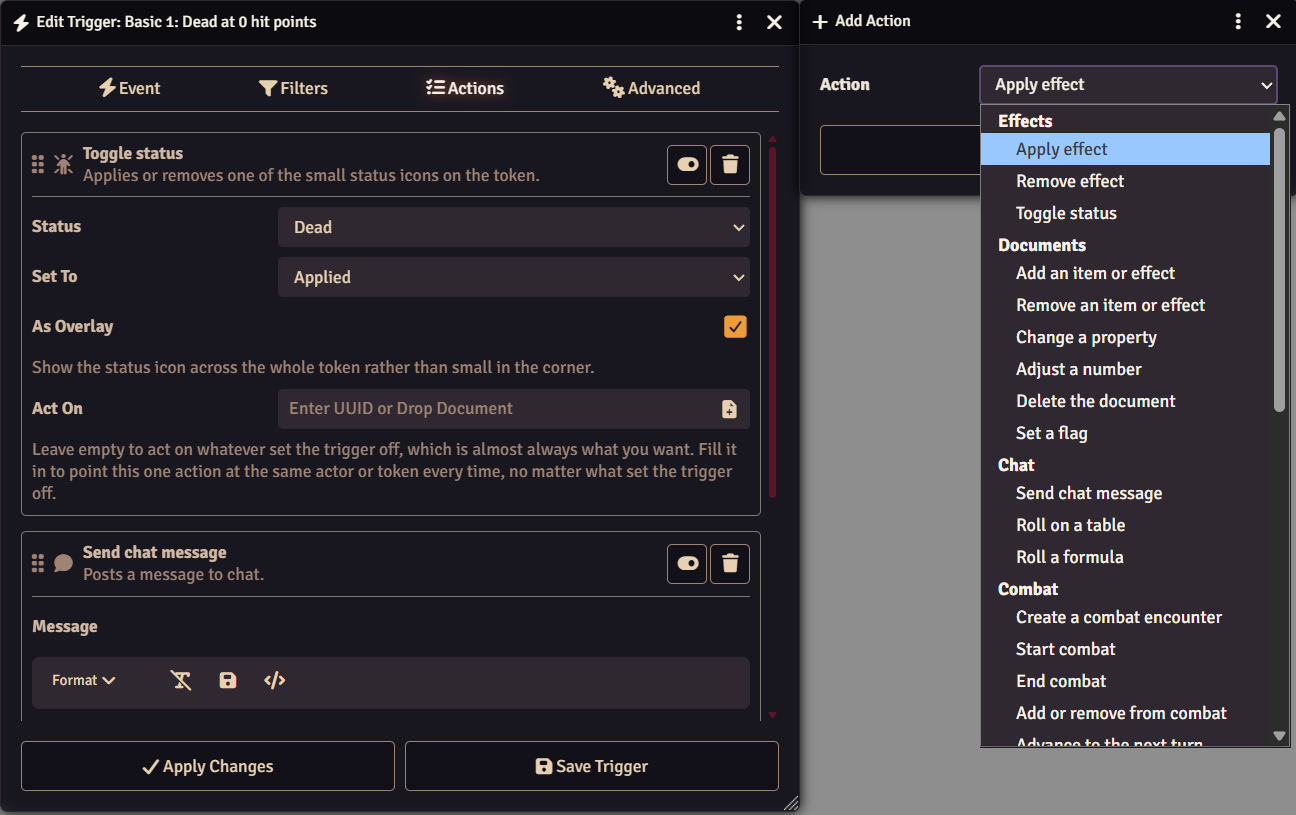

Actions
Actions run in order from top to bottom and can be reordered by dragging. If one of them fails, the rest are skipped, which is covered under Execution.
| Group | Actions |
|---|---|
| Effects | Apply effect, remove effect, toggle status |
| Documents | Add an item or effect, remove an item or effect, change a property, adjust a number, delete the document, set a flag |
| Chat | Send chat message, roll on a table, roll a formula |
| Combat | Create a combat encounter, start combat, end combat, add or remove from combat, advance to the next turn, advance to the next round, roll initiative |
| Audio and Visual | Play a sound, show a notification, pan to the token, hide or reveal the token, set the token's light, show an image, start or stop a playlist |
| Flow | Wait, enable or disable another trigger, run another trigger, target the token, advance world time, pause the game |
| Advanced | Run a macro, run a script |
| Debug | Show what the event gives you |
| D&D 5e | See Events and Actions for Your System |
Each action card shows what that action does under its title.
Every action works on whatever the event was about unless you fill in Act
On, which points that one action at a fixed document instead. Chat messages
and notifications accept {{actor.name}} style substitution using any of the
names listed on the Event tab.
Change a property and adjust a number can both roll dice. Type 2d6 to
write a rolled amount, or -1d4 to take one away. Anything starting with @ is
read from the target, such as -@system.details.level, and the two can be mixed
in one value. Your game system's short forms, such as @abilities.str.mod, work
too.
The five actions that happen on a player's own screen - play a sound, show a notification, pan to the token, show an image, and target the token - also pick an audience. Note that a gamemaster owns every actor, so Owners reaches them on everyone's turn. Player Owners is the one that leaves them out.
Sharing One List of Actions
Run another trigger runs a second trigger's on whatever set the first one off. Its event, its conditions, and its on or off switch are all skipped, so a trigger written only to be run this way can be left switched off and still do its job.
This is how several triggers share one list of actions: put the actions in a trigger of their own, point each of the others at it, and editing that one list changes what all of them do.
Finding Out What Went Wrong
Show what the event gives you writes every name the event carries, and the value it holds, to the browser console. Add it to a trigger, set the trigger off, and open the console (F12 or Ctrl+Shift+I or Cmd+Shift+I) to see the provided values. It is the easiest way to work out why a condition or a message is not reading what you expected.
What a Macro or Script Receives
Run a macro and run a script both get the trigger context handed to them: a macro as named arguments, a script as variables already in scope. You never have to unpack anything.
| Name | What it is |
|---|---|
document | What the event was about. |
actor | The actor involved. |
token | The token drawn on the canvas. See the warning below. |
tokenDocument | The token's document, wherever it is placed. Use this to read its data. |
item, effect | The item or active effect involved. |
combat, combatant | The combat and combatant involved. |
region, scene | The region and scene involved. |
user | The user whose action set the trigger off. |
changed, previous | The update data, and the values from before it. {} when not an update. |
statusId | The status involved, for status events. |
event | The id of the event that fired. |
trigger | The trigger itself, including its name and id. |
speaker | A speaker object, ready to hand to ChatMessage.create. |
depth | How many triggers deep this one is. Counted for you. |
Every name is always defined, so you never get a reference error. The ones the
event does not provide are null instead, and the Event tab lists which names a
given event fills in.
token is the token as drawn on the canvas, not its document. Triggers run on
the gamemaster's client, so token is null whenever that gamemaster is not
looking at the scene the token is on. In plain terms, a script that works while
you watch a fight will stop working the moment you switch scenes. Read data off
tokenDocument, which is there for any actor with a token placed on a scene no
matter which scene is open, and keep token for things that only make sense on
screen.
Events and Actions for Your System
Some events and actions only make sense in one game system, so they only show up when you are playing it. In a D&D 5e world the event and action pickers each gain a D&D 5e group. In any other system that group is not there at all, and nothing else about the module changes.
Every D&D 5e event is about an actor, so Applies To offers actor types for all of them. Set it to characters only, or to one creature, the same way you would for any actor event.
D&D 5e Events
| Event | Fires when |
|---|---|
| Actor takes damage | An actor loses hit points, however the damage was dealt |
| Actor is healed | An actor regains hit points, however the healing was done |
| Actor finishes a rest | A rest is finished and everything it restores has been applied |
| Actor rolls a death save | A death saving throw has been rolled and the result marked on the actor |
| Actor stops concentrating | An actor stops concentrating on a spell, for any reason |
| Actor uses something | An item is used, a spell is cast, or any other action posts a card to chat |
| Actor rolls an attack | An attack is rolled, with the option to fire only on a critical hit or miss |
| Actor rolls a check or save | An ability check, skill check, tool check, saving throw, or initiative is rolled |
Actor takes damage and Actor is healed both report how big the change
was, so a condition reads changed.total as a plain number either way. Both
also take a minimum amount, which is the quickest way to write "took a real hit"
rather than reacting to every point of chip damage.
Actor rolls a death save can be narrowed to a success, a failure, a natural one, a natural twenty, the third success, or the third failure. One save can be several of these at once, and each option matches all of them: a natural one is also a failure, and it is a death as well if it was the one that finished the actor off.
A natural one on a death save costs two failures rather than one, which is how it is recognised. An actor who already had two failures marked cannot go past three, so a natural one there looks the same as an ordinary failure. That save is a death, so match on the third failure to catch it.
Actor stops concentrating carries the spell that ended as the effect, so a trigger can act on which one it was. It can be narrowed to the spell running out on its own, or to something ending it early.
Actor uses something can be narrowed to a kind of use, such as only saves or only attacks, and to a kind of item, such as only spells.
Actor rolls a check or save covers ability checks, skill checks, tool checks, saving throws and initiative, and can be narrowed to one of those, or to a single ability or skill. Death saves and concentration saves are left to the events that are about those, which say far more about what happened.
The events built on a chat card put what the card said in changed, so a
condition or a chat message can use it:
| Event | What is in changed |
|---|---|
| Actor finishes a rest | restType |
| Actor uses something | activityType. The item used is available as item |
| Actor rolls an attack | total, critical, fumble |
| Actor rolls a check or save | kind, ability, skill, tool, total, critical, fumble |
For example, a condition of changed.total at least 20 on Actor rolls a
check or save fires only on a high result, and {{changed.total}} puts the
result in a chat message.
Actor rolls an attack cannot tell you whether the attack hit. That depends on the target's armor class, which is not part of the roll. It can tell a critical hit and a critical miss apart, because the die alone decides those.
The system does not record why concentration ended. A spell running out can be told apart because its duration has run down, but a failed save, casting something else, and ending it by hand all look the same, so they are grouped together as ended early.
D&D 5e Actions
| Action | What it does |
|---|---|
| Apply damage | Deals damage, taking resistance, immunity and temporary hit points into account |
| Apply healing | Restores hit points, or grants temporary hit points |
| Take a rest | Puts an actor through a short or long rest, or asks the player to take one |
| Roll a check or save | Rolls a check, save, death save, or concentration save and posts the result to chat |
| Use an item | Uses an item, casts a spell, or takes a feature |
| Change exhaustion | Raises or lowers exhaustion, keeping the condition on the sheet in step |
| Stop concentrating | Ends concentration, and with it whatever the actor was holding |
Apply damage and apply healing are worth using instead of adjust a
number on hit points. Writing hit points directly skips resistance, immunity,
damage thresholds and temporary hit points, while these two go through the
system and get all of it right. Both accept dice, so 2d6 rolls, and both
accept {{changed.total}} to reuse an amount from the event.
Use an item either points at one exact item or names one. A named item is looked up on whichever actor the trigger is acting on, so a single trigger covers every monster that has a Multiattack.
Take a rest can rest the actor right away or ask the player. Resting right away recovers anything that comes back on that rest, but spends no hit dice, because nobody is there to choose how many. Asking the player posts the system's own rest card; they click it to open the normal rest window and spend hit dice themselves. The player does not need to be online for the card to be posted, and can click it later.
If you open a world in a different system, triggers you built with these are left alone rather than thrown away. The event or action shows as unavailable and is skipped, and everything you set up comes back when you return to D&D 5e.
Execution
Foundry hooks fire on every connected client, but triggers only run on the gamemaster's, which is what stops a trigger firing once per connected player. Notifications and sounds are then passed along to the players who should get them. Macros and scripts run with gamemaster permissions, and scripts need the Use Script Macros permission.
Triggers do not fire when no gamemaster is logged in. The module warns you about this on load if the world has triggers configured.
Actions run one at a time, from the top of the list down, and each one finishes before the next starts. If an action fails, the trigger stops there and the actions below it do not run. This is by design, as an action further down the list can count on one above it having executing successfully. A script that cannot find what it is looking for, or an action pointed at something that has since been deleted, will end the run.
The Log tab records how many actions ran before the trigger stopped, along with the error, so a run that ends early is easy to tell apart from one that finished.
Recursion
An action that changes a document can cause events that fire other triggers. Every change a trigger makes is stamped with how deep in a chain it is, and the chain stops at the configured maximum depth. Raise Maximum Trigger Depth if you are chaining triggers on purpose. If you are not, hitting the limit usually means a trigger is reacting to its own changes, and a condition that pins down what it should match is the fix.
Examples
The module ships with examples covering every event and action, in sets. Load Examples at the bottom of the configuration window asks which sets you want: Basic and Complex to begin with, plus a D&D 5e set that is only offered while you are playing D&D 5e. They arrive switched off so you can turn them on one at a time. Loading a set again refreshes it in place rather than making duplicates, and leaves your own triggers alone.
See Examples for what each one does.
Sharing Triggers
Export at the bottom of the configuration window writes every trigger in the world to a file. Import reads one back and asks how it should arrive:
- Add keeps the triggers you already have and puts the imported ones after them.
- Replace All deletes every trigger in the world first.
Either way, an imported trigger takes the place of one you already have with the same id. That is what lets you export a set of triggers, change them elsewhere, and import them again to update them rather than end up with two of each.
Logging
The Log tab records each trigger run for the current session, including what fired it, what it acted on, how many actions ran, and any error. It clears on reload.
When a trigger is not firing and it is not clear why, turn on Verbose Logging. The browser console then names the filter that rejected each trigger.
Settings
| Setting | Scope | Default | Description |
|---|---|---|---|
| Maximum Trigger Depth | World | 3 | How many times a trigger may cause another trigger to fire before the chain is stopped. |
| Verbose Logging | Client | Disabled | Write extra detail to the browser console when triggers are evaluated. |
Alongside them is one config menu:
| Menu | Description |
|---|---|
| Configure Triggers | Create and edit triggers, and view the run log. |
If you have Lib: DFreds UI Extender installed, Configure Triggers also appears as a button in the Settings sidebar, under the Module Settings heading. It opens the same window, and only Game Masters can see it.
